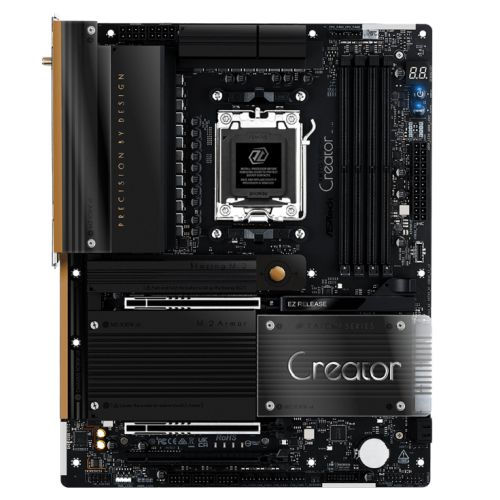

Asrock X870 TAICHI CREATOR, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 10G & 5G LAN, 4x M.2
Asrock X870 TAICHI CREATOR, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 1
£286.31Price
The X870 Taichi Creator features 10GbE and 5GbE LAN, dual USB4 Type-C, dual Gen5 M.2 slots, and dual PCIe 5.0 x16 slots with extra spacing for dual-GPU setups.
Its sharp lines, metallic edges, and mirrored nameplate reflect the signature Taichi Creator style—precision meets elegance.- Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
- 18+2+1 Power Phase, 80A SPS for VCore+SOC
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 2 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 2 USB4 Type-C
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 2 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4)
- 4 SATA3
- 2 USB4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 2 USB 3.2 Gen2 (Rear)
- 10 USB 3.2 Gen1 (6 Rear, 4 Front)
- 8 USB 2.0 (2 Rear, 6 Front)
- 10Gbps LAN, 5Gbps LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD X870
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: "DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports XMP and EXPO memory modules" - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 8000+(OC)
- Maximum Memory: 256GB
- Graphics: Integrated Graphics
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs - PCI/PCI Express: 2 x PCIe 5.0 x16 (support x16 or x8/x8 modes)
1 x PCIe 3.0 x16 (supports x4 mode)
*specifications may vary between C{PU types - Storage: 4 x SATA III
4 x M.2
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2280) - PCIe 5.0 x4
M.2_3 (2280) - PCIe 4.0 x4
M.2_4 (2280) - PCIe 3.0 x4 - RAID: "Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices"
- Wireless: 802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.4
Supports MU-MIMO - LAN: 10GB LAN & 5GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- USB Ports Supported: Rear:
2 x USB4 (40Gbps) Type-C (up to 15W PD 3.0)
2 x USB 10Gbps Type-A
6 x USB 5Gbps Type-A
2 x USB 2.0
Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps Type-A
6 x USB 2.0 - Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
2 x USB4 Type-C (40 Gb/s)
2 x USB 3.2 Gen2 Type-A
6 x USB 3.2 Gen1 Type-A
2 x USB 2.0
2 x RJ-45 LAN
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack - Internal I/O Connectors: 1 x Thermistor Cable
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
4 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
3 x USB 2.0
2 x USB 3.2 Gen1 - .: 1 x Front Panel Type C USB 3.2 Gen2x2
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED - Accessories: 4 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
1 x Thermistor Cable - Additional Features: See Overview
- Package Type: Retail
- Package Weight: To be confirmed
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: 10GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
