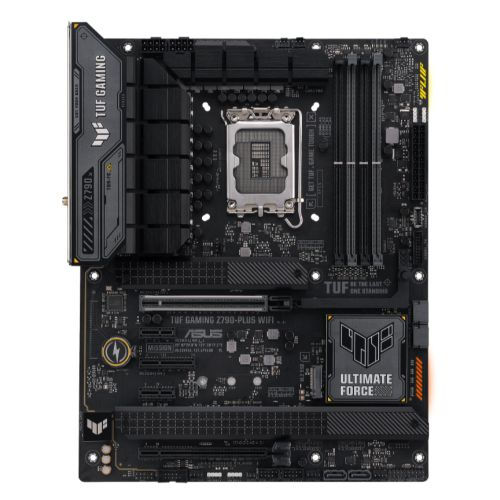

Asus TUF GAMING Z790-PLUS WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Asus TUF GAMING Z790-PLUS WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6

£214.24

Quantity

TUF GAMING Z790-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Power stages - 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks

PCIe - PCIe® 5.0 for graphics cards

Memory module support - 7200+ MT/s, AEMP II

Connectivity - USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header

PC DIY friendly - PCIe Q-Release

Ethernet - 2.5 Gb Ethernet

WiFi 6E

AI Cooling II

Two-Way AI Noise Cancelation

AI Cooling II

Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

All Around Efficiency

The Power Saving function contains several settings that can easily optimise power consumption and maximise energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

EZ Mode

EZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.

Advanced Mode

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Asus Armory Crate

The ASUS-exclusive Armoury Crate software centralises control of all supported gaming products. A single intuitive interface lets you customise RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.

DRMOS Power Stages

16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

Six-Layer PCB Design

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

8+8 PIN ProCool Power Connectors

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components

Incredibly durable military-grade components including chokes and capacitors which offer fantastic stability and long life.

DIGI+ VRM

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.

PCIe 5.0 Ready

The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.

Intel®2.5 Gb Ethernet

On-board 2.5 Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.

Two-Way AI Noise Cancelation

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting
Description

Specification

Motherboard Type: Desktop

Form Factor: ATX

Socket: Intel 1700

Chipset: Intel Z790

#Hide#DDR Type: DDR5

CPU Support: Click here for CPU support

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 7200(OC)

Maximum Memory: 192GB

Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI
1 x DisplayPort

PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1

Storage: 4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"

Wireless: Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

LAN: 2.5GB LAN

Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header"

Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
4 x USB 3.2 Gen1 Type-A
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out"

Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2

.: 1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)

Accessories: 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guide

Additional Features: See Overview

Package Type: Retail

Package Weight: 2.0100 kg

Warranty: 3 Years

#Hide#M.2 Slot(s): Yes (M.2)

#Hide#No. LAN Ports: 1 x LAN

#Hide#Max LAN Speed: 2.5GB LAN

#Hide#Wi-Fi: Yes (Wi-Fi)

#Hide#RGB Lighting: Out of the box RGB lighting
