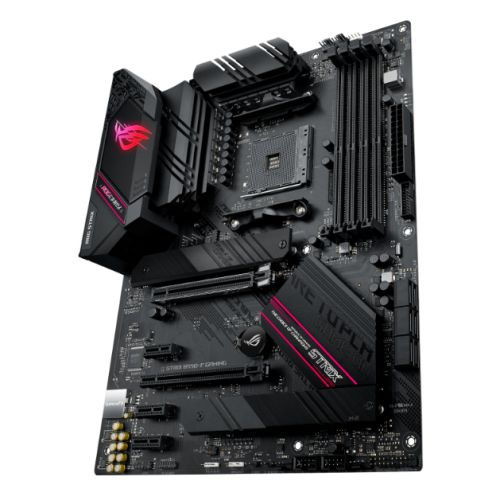

Asus ROG STRIX B550-F GAMING, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB Lighting, M.2
Asus ROG STRIX B550-F GAMING, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB
£147.60Price
AMD B550 ATX gaming motherboard with PCIe® 4.0, teamed power stages, Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting- AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Best gaming connectivity: PCIe®0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.Advance Your Gaming ImmersionROG Strix B550-F Gaming is PCIe 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.All-round PerformanceROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues.Play Your Own StyleThe cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customised gaming setup that reflects your personal style.ROG Gives You MoreROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM4
- Chipset: AMD B550
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs - RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 3rd Gen AMD Ryzen CPUs:
4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Next Gen AMD Ryzen PRO CPUs:
5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz - Maximum Memory: 128GB
- Graphics: Integrated Graphics Processor*
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
- PCI/PCI Express: 1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1 - Storage: 6 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe - RAID: "RAID 0, 1, 10"
- Wireless: -
- LAN: 2.5GB LAN
- Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- USB Ports Supported: "2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x Intel I225-V 2.5Gb LAN
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen2 (Type-A & C)
4 x USB 3.2 Gen1
2 x USB 2.0
1 x Optical S/PDIF out
1 x BIOS FlashBack Button
5 x Gold-plated audio jacks
ASUS Wi-Fi module - Internal I/O Connectors: 1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
1 x AAFP
2 x Aura RGB Strip
1 x Addressable Gen2
1 x USB 3.2 Gen1
2 x USB 2.0
2 x M.2 Socket 1 with M key
6 x SATA 6Gb/s
1 x Thunderbolt - .: 1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x System panel
1 x Thermal sensor
1 x Clear CMOS jumper - Accessories: 4 x SATA 6Gb/s cables
1 x ROG Strix sticker
1 x Cable ties pack
1 x Ext cable for Addressable LED
1 x ROG Thank you card
1 x M.2 SSD screw package
1 x M.2 Rubber Package - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.6800 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#RGB Lighting: Out of the box RGB lighting
